Sakti Studio | AutoCad Template Package

87 ratings
If you have a company or small architecture studio and use AutoCad as the main software, you might need this template to improve the quality of your drawing.

You'll get:

01 | Autocad Drawing Template (.dwt File)

  • Best Choice of Line type & Line Width
  • Best Choice of Color Interface (layers)
  • Template made by metric and imperial measurements, meters, centimeters, millimeter, inches, feet
  • Annotative & Dynamic Blocks
  • Annotative Text
  • Annotative Leader (Callout)
  • Annotative Pattern type (Hatch) with good scale selection

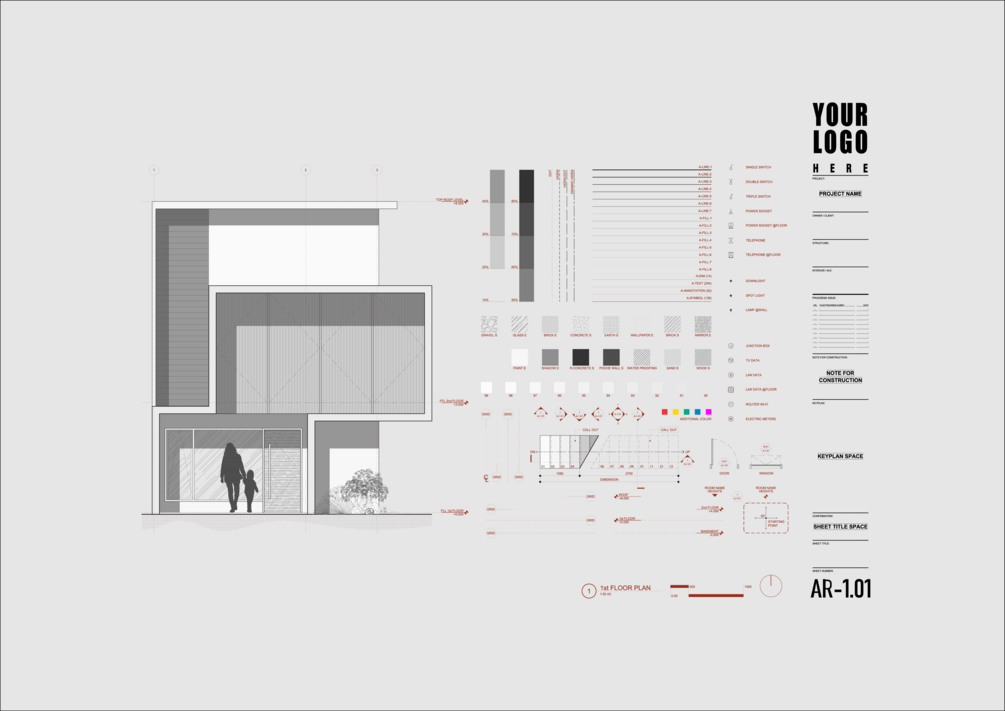

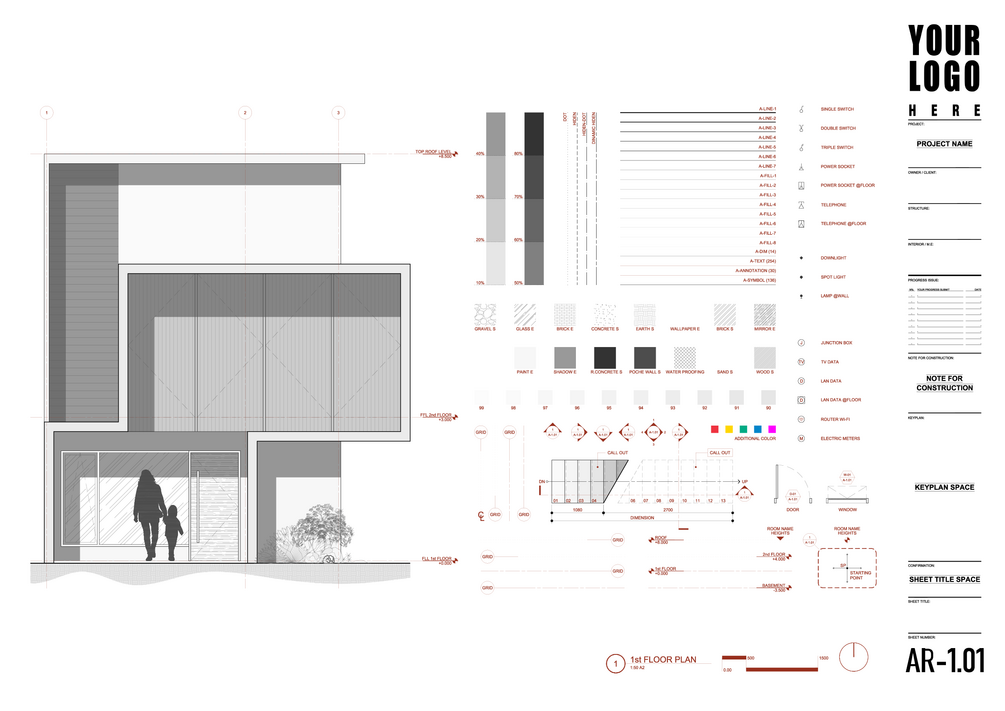

  • Page setup with Title Blocks for A1/A2/A3 Pepper size
  • Plot Style with 3 variants color pick (Blue/Red/Black)
  • Two kind Filters / CTB Files (Color-Dependent Plot Style tables) for general drawing and details drawing.

02 | Sheet set Package (.dst File)

  • Sheet set File (.dst) including several layouts integrated with title blocks and page setup

  • Table of content (automatically updated) synchronized with sheet set
  • Sheet title, sheet number automatically synchronized with sheet set

03 | Supplement Package (.zip File)

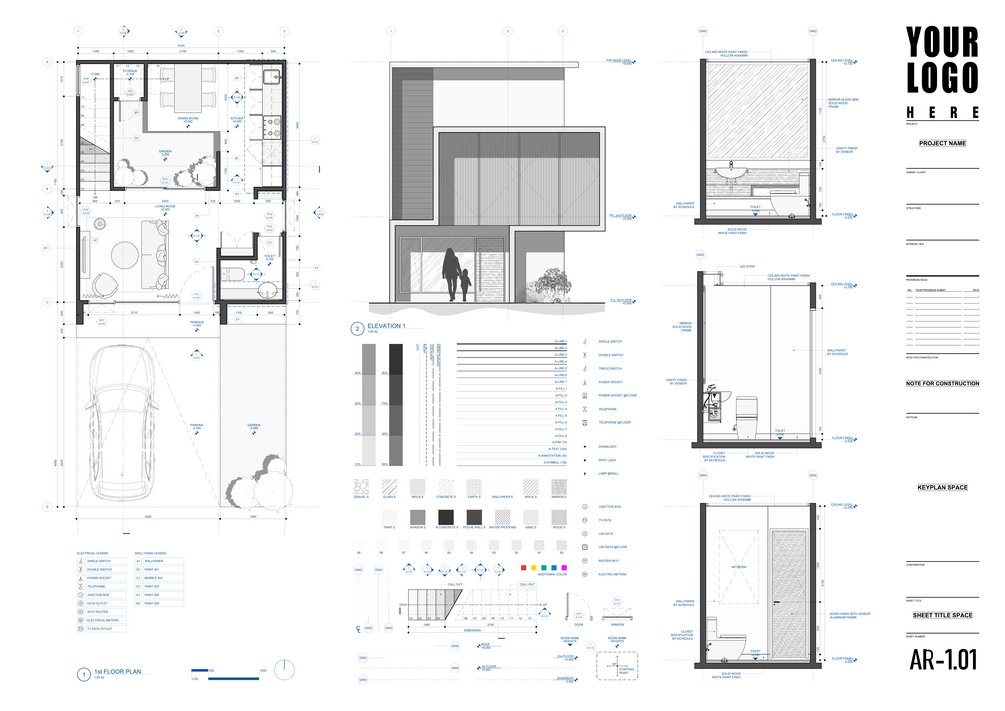

  • Sample of Floor Plan, Elevation, and Section

  • Free! Thousands of CAD Block Compilation Including Furniture, Peoples, Vegetation, vehicles, and many kinds
  • Instruction in English & Bahasa

Visit My Website

04 | Video Tutorial (English Subtitle)

Video 1: See How My Template Works

Video 2: How To Use My Template


  • This file can be used in AutoCAD 2013 or later, with the earlier version you can still run this file but I'm not sure if it will run as it should
  • If you using Autocad  lower version the sheet set tool will not work well

AutoCAD Template 2020 Version

I am very excited about your enthusiasm for using my templates, I am very happy to hear that my templates help with your work, and I have received enough feedback from you to make this template even better. for that I am quite happy to share this news, that a template update will be released in the near future.


Q: I have bought this template. Should I buy it again?

Saya telah/akan membeli template ini, apakah saya harus membelinya lagi nanti?

A: Of course not, For those of you who have bought or are about to buy this template, either via Gumroad or via WhatsApp, you can still download it again with the link that I will provide for free later.

Q: What's new with this 2020 version?

A: I've done a few things regarding updates from your feedback for this template, such as procuring new units for metric and imperial measurements, meters centimeters millimeter inches feet, CTB / Filter for general and detailed image needs, many fonts and dimensions of different sizes, additional dynamic/annotative blocks, add and update layers (line thickness), more sample pictures to guide you, and a few more things.
